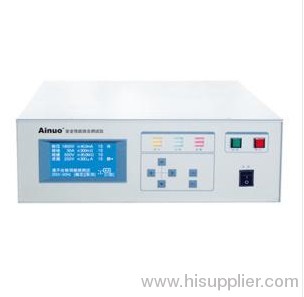

Ground Bond Tester from China manufacturer - Ainuo Instrument Co., Ltd.,

Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Applicable to all kinds of home appliances manufactures and measurement,certification organizations and scientific research institutions of this field

Technical Parameter		AN9651B(F) (6 in 1)	AN9641B(F)			AN9640B(F)
Ground Bond Test	No-load Output Voltage
	Current Presetting Range	AC 3A~30A 50Hz/60Hz 1A/step			AC 10A 25A 50Hz/60Hz
	Current Accuracy	±(1.5% of setting+0.40A)
	Current Stability
	Resistance Range/Accuracy	10~600mΩ ±(1.5% of reading+1.5% of range)
	Resistance Up-Limit Range	3A≤Current≤10A:10~600mΩ; 11A≤Current≤25A:10~300mΩ; 26A≤Current≤30A:10~200mΩ 1mΩ/step		10A:10~600mΩ; 25A:10~300mΩ; 1mΩ/step
	Resistance Low-Limit Range	0mΩ
	Compensation Resistance Range	0~200mΩ,Automatic Measurement, ON/OFF
	Voltage Range/Accuracy	30~7500mV ±(1.5% of reading+1.5% of range)
	Voltage Up-Limit Range	30~7500mV 1mV/step
	Voltage Low-Limit Range	0mV
	Compensation Voltage Range	0~1000mV,Automatic Measurement, ON/OFF
	Test Time Range/Resolution	1~999s 1s/step
Insulation Resistance Test	Rated Output Load/Current	2VA(1000V/2mA) 2mA
	Output Voltage Range/Resolution	DC 500V/1000V
	Output Voltage Ripple
	Output Voltage Accuracy/Resolution	±(3% of setting+3V) 5V
	Resistance Range/Accuracy	≤200MΩ: ±(3% of reading+3 counts); >200MΩ: ±(8% of reading+8 counts)
	Resistance Up-Limit Range	0~2000MΩ				2000MΩ
	Resistance Low-Limit Range	0.3~2000MΩ 0.1MΩ/step(≤100MΩ),1MΩ/step(>100MΩ)
	Test Time Range/Accuracy	1~999s 1s/step
AC Hipot Test	Rated Output Load	500VA(AC:5000V/100mA)				100VA(AC:5000V/20mA)
	Output Voltage Range/Freq/Resolution	500~5000V 50Hz/60Hz
	Output Voltage Setting Range/Accuracy	Static:AC,500~5000V;Dynamic:AC,500~2500V; ±(3% of setting+10V)				Static:AC,500~5000V; ±(3% of setting+10V)
	Breakdown Current Meas. Accuracy	±(3% of reading+0.03mA)
	Breakdown Current Alarm Preset Range	Up-Limit:0.10-100.00mA;Low-Lmit:0-10.00mA; 0.01mA/step				Up-Limit:0.10-20.00mA;Low-Limit:0.0-10.00mA; 0.01mA/step
	Compensation Current Range	0.00-10.00mA,Automatic Measurement, ON/OFF
	Test Time Range	1~999s 1s/step
	Rise Time Range	0~100s 1s/step
